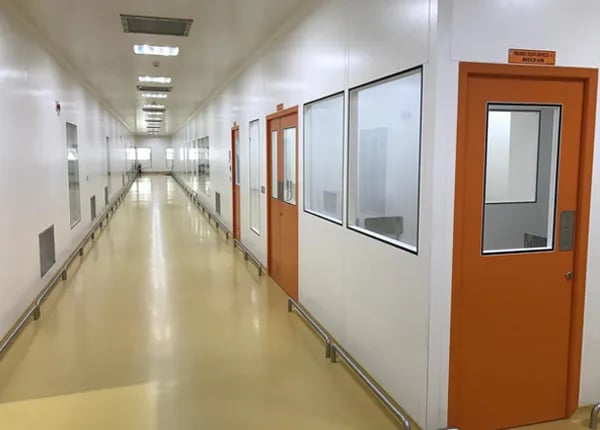

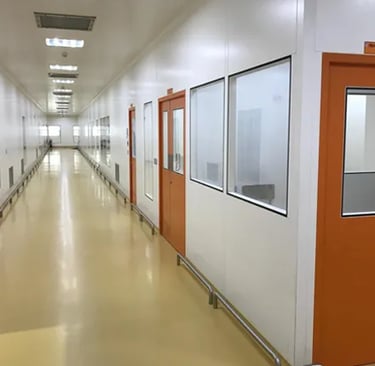

Clean Room Partitions are specially designed modular wall systems used to create controlled and contamination-free environments in industries where air quality, hygiene, and particle control are critical.
At SAKA TECHNO VENTURES PVT. LTD., we supply and install high-quality clean room partition systems that meet strict industry standards for pharmaceutical, healthcare, laboratory, and manufacturing environments.
These partitions are designed for durability, easy cleaning, airtight sealing, and long-term performance, helping maintain the required cleanroom classification and hygiene standards.
Key Features
Modular panel system for quick installation
Smooth and non-porous surface for easy cleaning
Airtight sealing to control contamination
Strong aluminum or GI framework
Compatible with clean room doors and view panels
Chemical and corrosion resistant panels
Applications
Clean Room Partitions are widely used in:
Pharmaceutical Manufacturing Units
Hospitals & Healthcare Facilities
Biotechnology Laboratories
Electronics Manufacturing
Food Processing Industries
Research & Testing Laboratories
Our Services
SAKA TECHNO VENTURES provides complete cleanroom solutions including:
Clean Room Partition Supply
Design & Layout Planning
Installation & Commissioning
Clean Room Doors & Accessories
Maintenance & Support Services

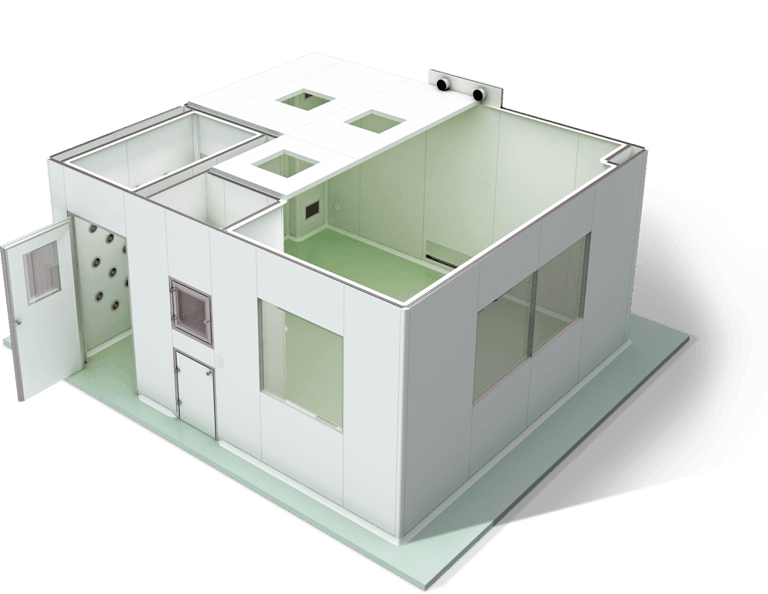

Clean Room Partition System
Clean Room Partitions are modular wall systems designed to create controlled, hygienic, and contamination-free environments in industries such as pharmaceuticals, healthcare, laboratories, electronics, and food processing. These partitions provide smooth surfaces, airtight sealing, and easy maintenance to maintain required cleanroom standards.
Technical Specifications
Features
Smooth and non-porous surface for easy cleaning
Airtight panel joints for contamination control
Modular design for quick installation
High durability and corrosion resistance
Compatible with Clean Room Doors, Windows, and Pass Boxes
Hygienic and easy maintenance
Applications
Clean Room Partitions are widely used in:
Pharmaceutical Manufacturing Plants
Hospitals & Healthcare Facilities
Biotechnology Laboratories
Electronics Manufacturing Units
Food Processing Industries
Research & Development Centers
Installation
Panels are installed using a modular aluminum framework system with sealed joints to maintain cleanroom integrity and airtight performance.
Compliance
GMP Guidelines
ISO Clean Room Standards
Pharmaceutical Industry Requirements
Parameter
Panel Type
Standard Panel Thickness
Panel Width
Maximum Panel
Height
Panel Skin Thickness
Skin Material
Core Material
PUF Density
Rockwool Density
Surface Finish
Color
Specification
Modular Sandwich Cleanroom Panel
50 mm / 60 mm / 80 mm
900 mm / 1000 mm / 1200 mm
Up to 4000 mm
0.5 mm – 0.8 mm
Pre-coated GI / Stainless Steel 304 / HPL
PUF / Rockwool / Honeycomb Paper
40 ± 2 kg/m³
100 kg/m³
Smooth Antibacterial Finish
Standard White / Custom RAL Shades

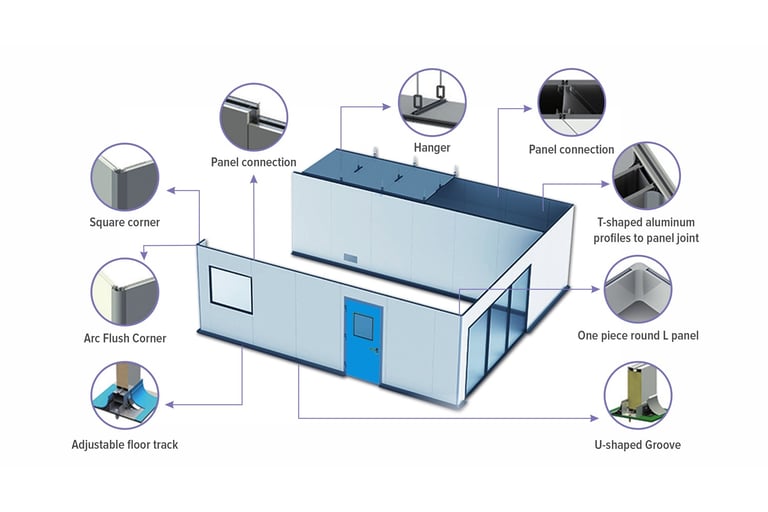

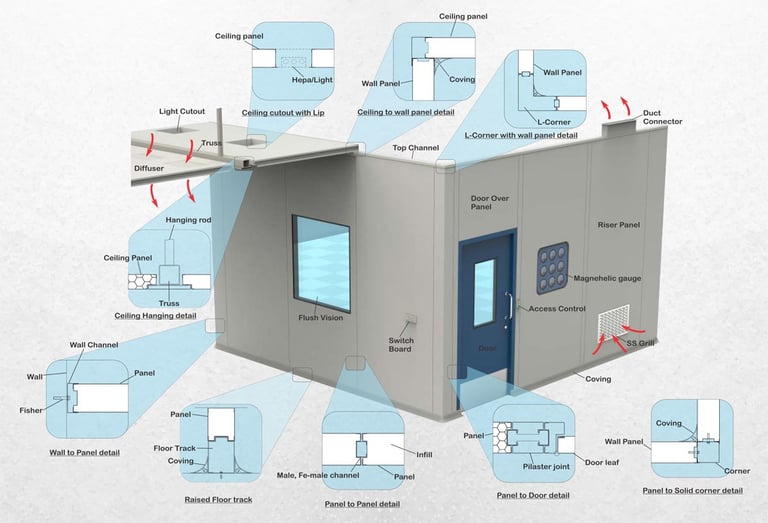

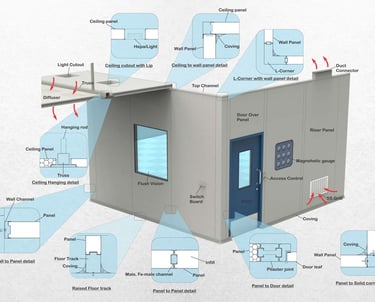

Structural Framework
Component
Framework Material
Frame Finish
Panel Joint System
Ceiling Interface
Floor Interface
Specification
Extruded Aluminum / GI
Powder Coated / Anodized
Tongue & Groove / Flush Joint
Aluminum Profile with Sealant
Aluminum Base Channel
Accessories & Integration
Clean Room Partitions are compatible with:
Clean Room Doors

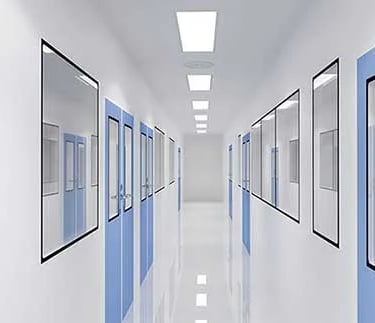

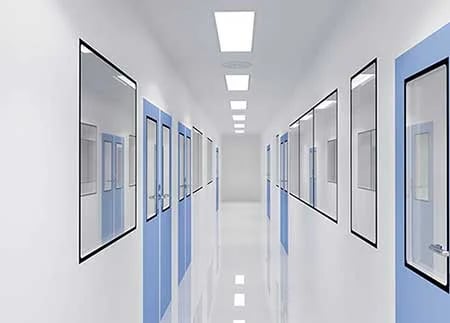

Flush Windows / Vision Panels
Dynamic Pass Boxes
Static Pass Boxes
Return Air Risers
Electrical & Utility Panels
