DOORS

SAKA TECHNO VENTURES PVT. LTD. is a trusted name in India for the supply and installation of Fire Rated Doors, Hollow Metal Doors, Wooden Fire Rated Doors, Glass Fire Rated Doors, Clean Room Doors, and Electric Shaft Doors — all compliant with required Government Certifications and Fire Safety Standards.

Our products are manufactured and supplied in accordance with relevant IS standards, fire safety norms, and statutory compliance requirements, ensuring reliability, durability, and maximum fire protection for commercial, industrial, and residential projects.

We provide certified fire door solutions with:

✔ Government Approved & Certified Products
✔ Fire Rating Options – 30, 60, 90 & 120 Minutes
✔ Compliance with National Building Code (NBC) Guidelines
✔ Tested & Quality-Assured Materials
✔ Professional Installation & AMC Support

With years of expertise and a strong execution team, SAKA TECHNO VENTURES PVT. LTD. delivers safe, durable, and regulation-compliant door systems across India.

Our Products

✔ Fire Rated Steel Doors

Certified and tested doors designed for maximum fire resistance and safety compliance.

✔ Wooden Fire Rated Doors

Engineered wooden doors with certified fire rating and premium finish.

✔ Hollow Metal Doors

Strong, durable, and suitable for industrial and commercial applications.

✔ Clean Room Doors

Specially designed doors for pharmaceutical, hospital, and controlled environments.

✔ Glass Fire Rated Doors

Modern safety solutions combining transparency with fire protection.

✔ Electric Shaft Doors

Safe and secure shaft doors as per building standards.

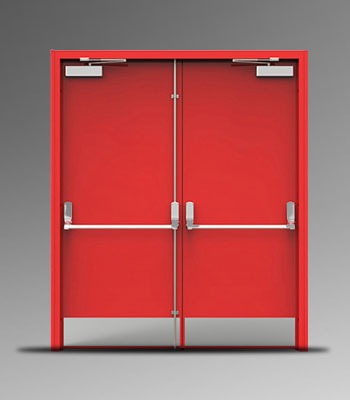

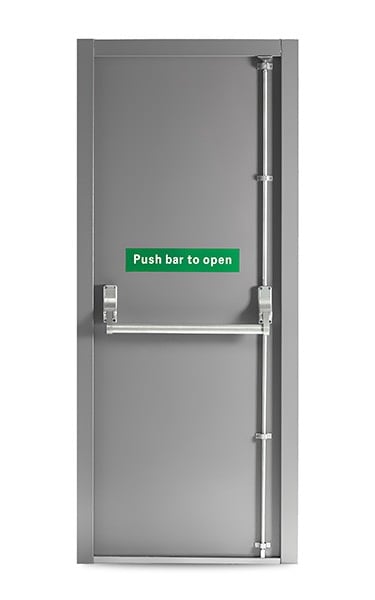

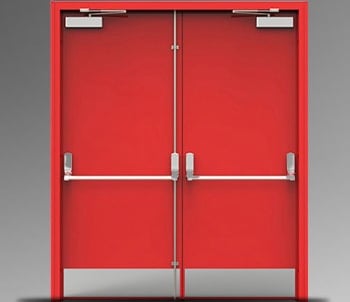

Fire Rated Steel Door

Premium Fire Protection with Certified Safety

Fire Rated Steel Doors are specially designed to prevent the spread of fire and smoke for a specified time period. These doors are widely used in commercial buildings, hospitals, factories, residential towers, and industrial projects.

Key Features

✔ Fire Rating: 60 / 90 / 120 Minutes (as per requirement)
✔ Heavy-duty galvanized steel construction
✔ Rockwool / Honeycomb infill options
✔ Powder coated finish (Any RAL color)
✔ Compatible with fire-rated hardware
✔ Durable, rust-resistant & low maintenance

Applications

Staircase & Fire Exit Areas
Electrical & Service Rooms
Industrial Units
Commercial Buildings
Hospitals & Institutions

Advantages

Controls fire & smoke spread
Increases building safety compliance
Long service life
Strong & impact resistant

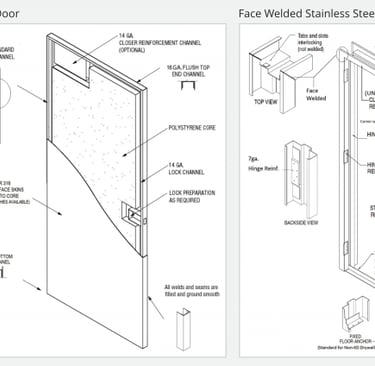

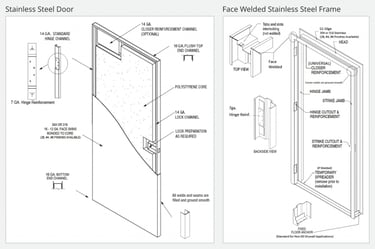

Fire Rated Steel Door – Technical Specifications

Door Leaf Construction

Door Thickness: 45 mm / 50 mm / 55 mm (as per fire rating)
Face Sheet Thickness: 0.8 mm / 1.0 mm / 1.2 mm GI (as per project requirement)
Infill Material:
- High-density Rockwool (48–64 kg/m³)
- Ceramic wool (for higher rating)
- Honeycomb (non-fire rated option)
Reinforcement Plates: Provided for hinges, lock, door closer, panic bar
Edge Profile: Interlocking seam / folded edge design

Door Frame Construction

Frame Material: Galvanized Steel (1.2 mm / 1.6 mm thickness)
Frame Profile: Single / Double rebate
Anchoring: Holdfast / Anchor fasteners
Finish: Powder coated (60–80 microns thickness)
Gasket: Intumescent fire & smoke seal

Fire Rating

60 Minutes
90 Minutes
120 Minutes
(Tested as per relevant IS / International standards as project requirement)

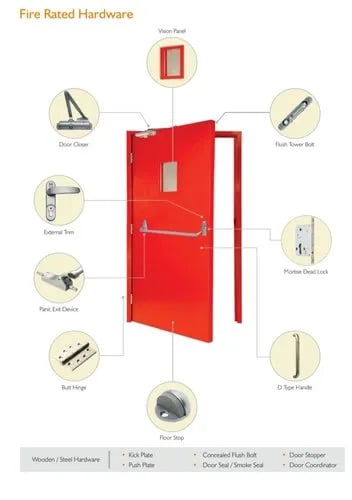

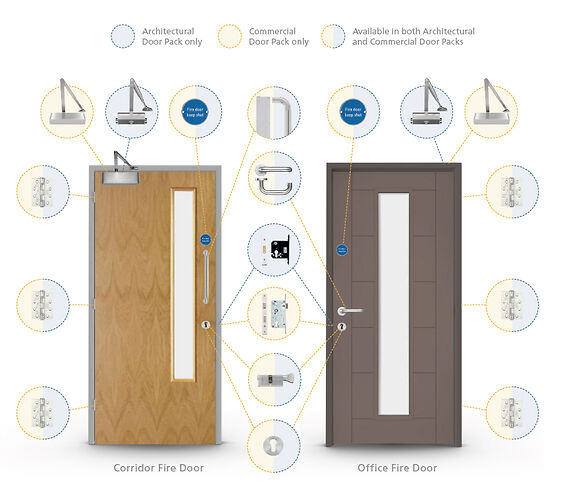

Hardware Compatibility

Fire-rated Hinges (3 / 4 Nos.)
Mortise Lock (Fire Rated)
Door Closer (Overhead / Concealed)

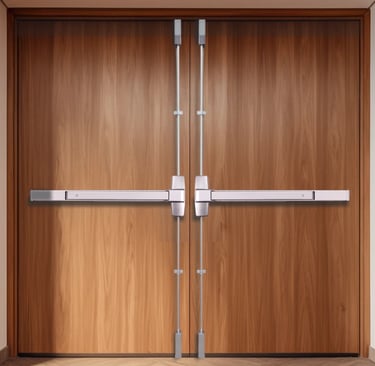

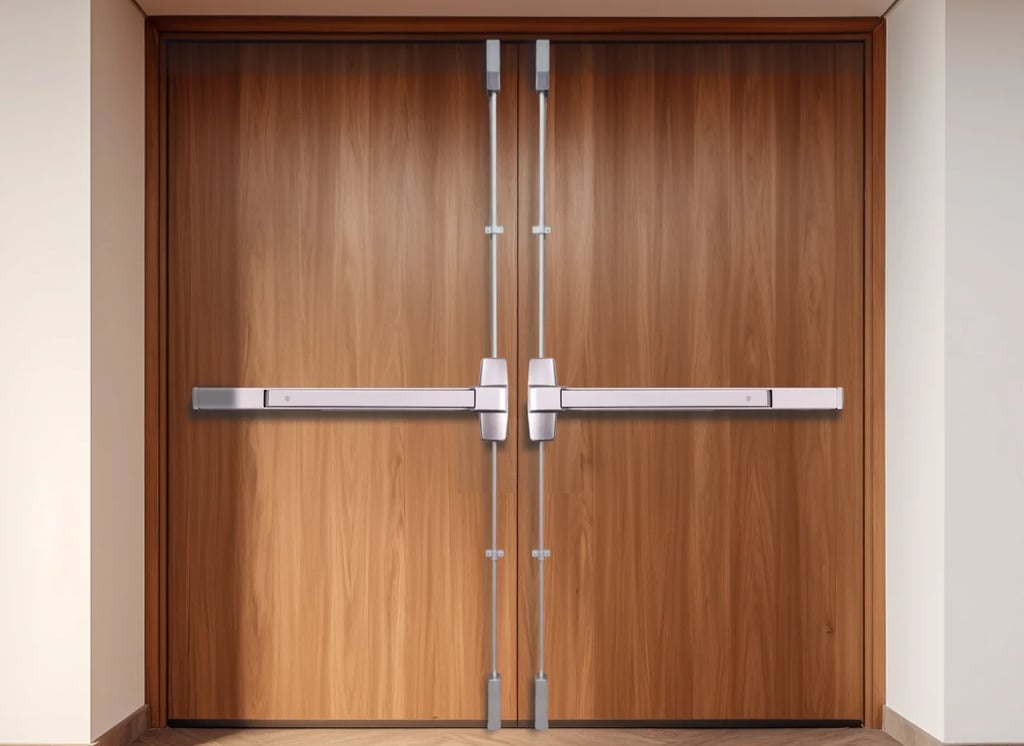

Panic Bar (For Fire Exit)
Vision Panel with Fire Rated Glass (Optional)
Drop Seal (Optional for smoke control)

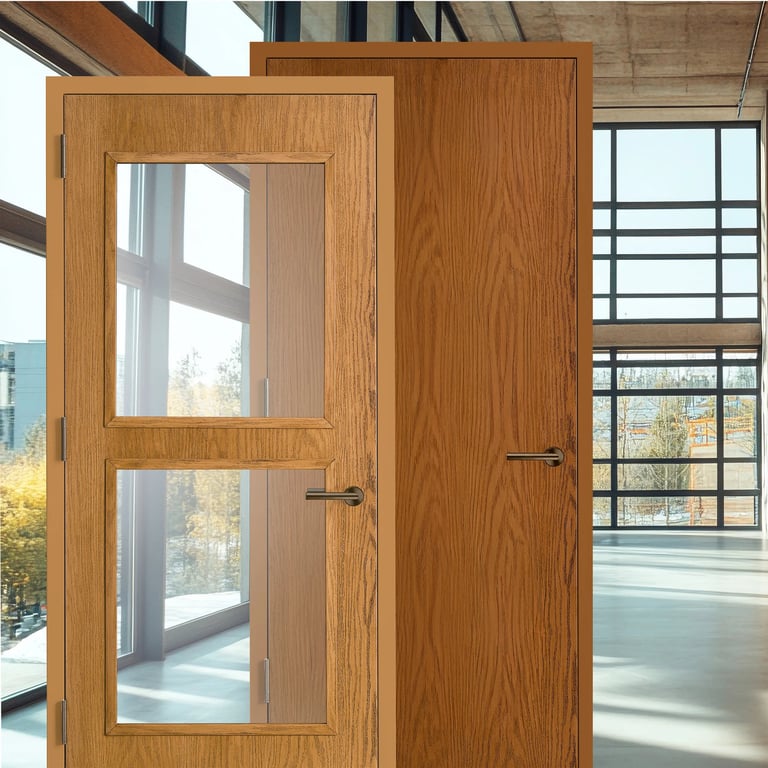

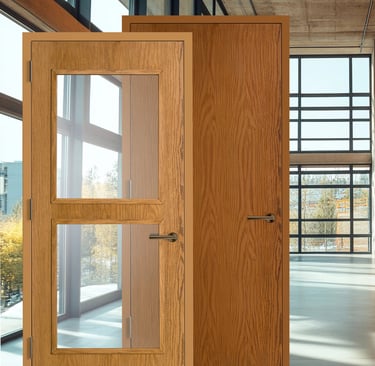

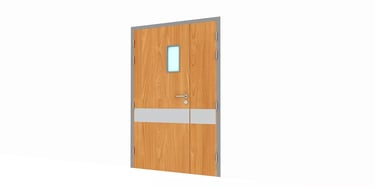

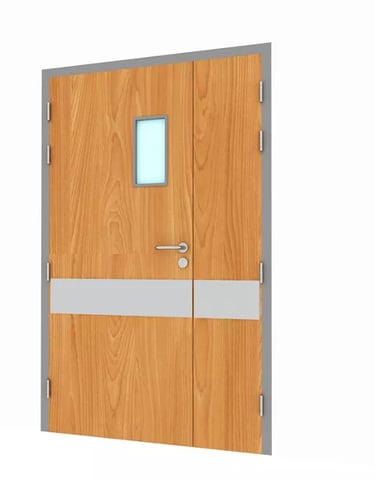

Metal Fire Rated Wooden Finish Doors

Metal Fire Rated Wooden Finish Doors combine the durability and fire resistance of steel with the elegant appearance of natural wood. These doors are ideal for hotels, offices, hospitals, commercial complexes, and residential projects where aesthetics and safety are equally important.

Technical Specifications

Door Leaf Thickness: 45mm / 50mm / 55mm
Face Sheet: 0.8mm / 1.0mm / 1.2mm Galvanized Steel
Infill: High Density Rockwool (Fire Rated Core)
Fire Rating: 60 / 90 / 120 Minutes
Finish: Wood Grain Powder Coating / Heat Transfer Wooden Finish
Frame: GI Steel Frame (1.2mm / 1.6mm)
Gasket: Intumescent Fire & Smoke Seal
Hardware: Fire-rated Hinges, Lock, Door Closer, Panic Bar (if required)

Finish Options

Teak Wood Finish
Walnut Finish
Oak Finish
Custom Wood Texture
Any RAL Inner Frame Color

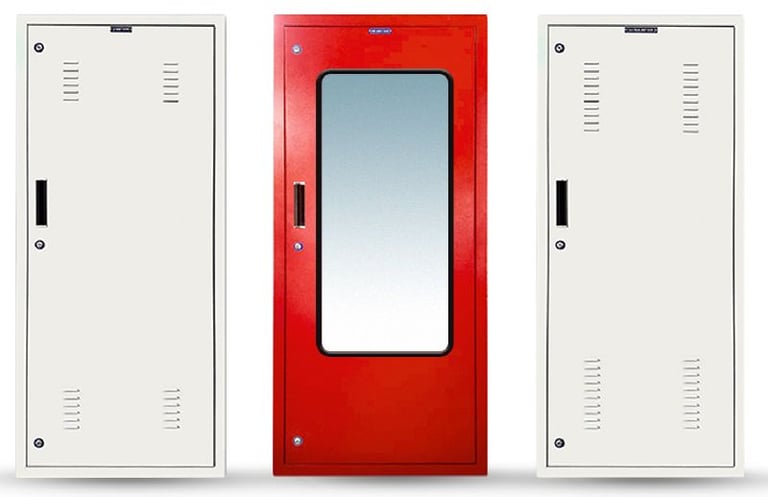

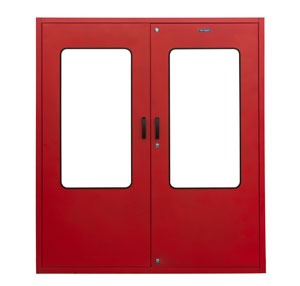

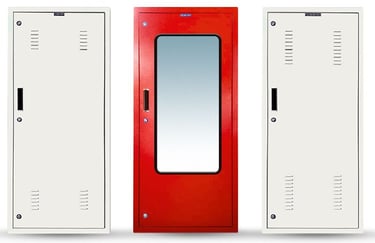

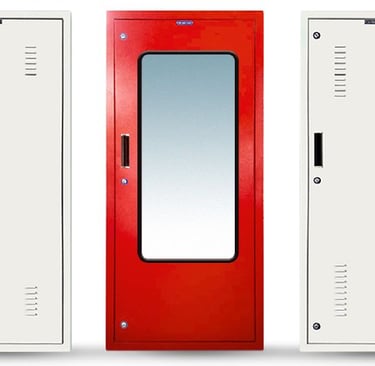

Metal Shaft Doors

Metal Shaft Doors are specially designed for electrical shafts, plumbing shafts, duct shafts, and service areas in residential, commercial, and industrial buildings. These doors provide safe and durable access to maintenance zones.

Technical Specifications

Door Leaf Thickness: 40mm / 45mm
Face Sheet Thickness: 0.8mm / 1.0mm GI
Frame Thickness: 1.2mm / 1.6mm GI
Infill: Honeycomb / Rockwool (if fire rated required)
Finish: Epoxy Polyester Powder Coating (60–80 microns)
Color: Any RAL Shade
Locking: Mortise Lock / Cylindrical Lock / Tower Bolt
Ventilation: With or Without Louvers (as per requirement)

Optional Features

✔ Fire Rated Version (60 / 90 / 120 Minutes)
✔ Louvers for Ventilation
✔ Double Leaf Option
✔ Vision Panel (if required)
✔ SS Hardware

Applications

Electrical Shafts
Plumbing Shafts
Duct Shafts
Service Rooms
Maintenance Areas

Advantages

✔ Strong & Durable Construction
✔ Corrosion Resistant
✔ Low Maintenance
✔ Secure & Safe Access
✔ Custom Sizes Available

Advantages

✔ Strong & Durable Construction
✔ Corrosion Resistant
✔ Low Maintenance
✔ Secure & Safe Access
✔ Custom Sizes Available

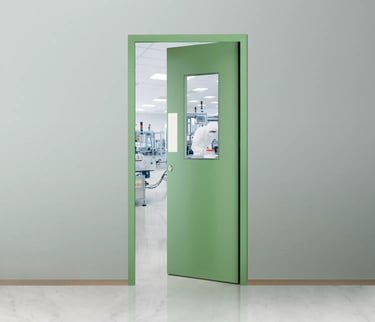

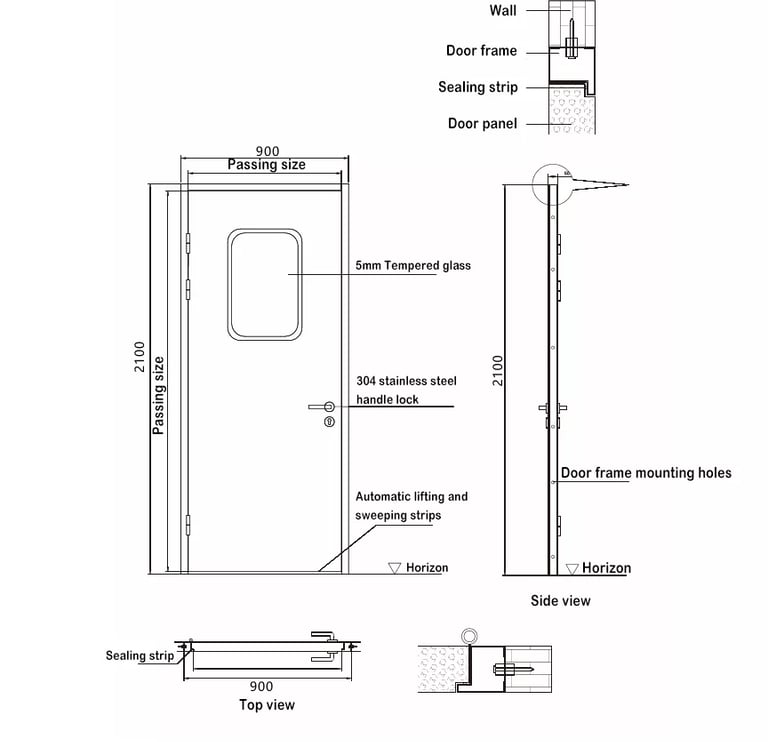

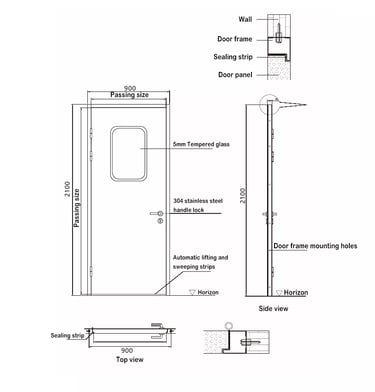

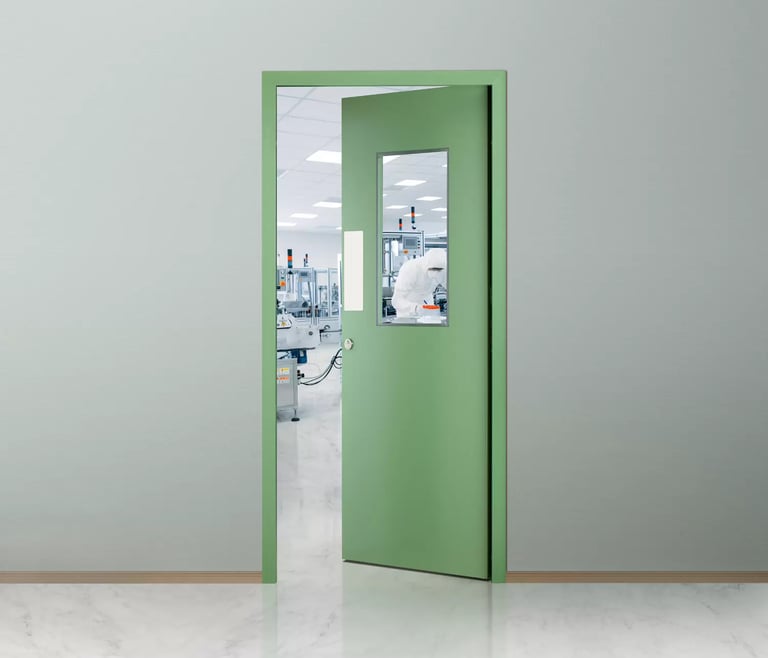

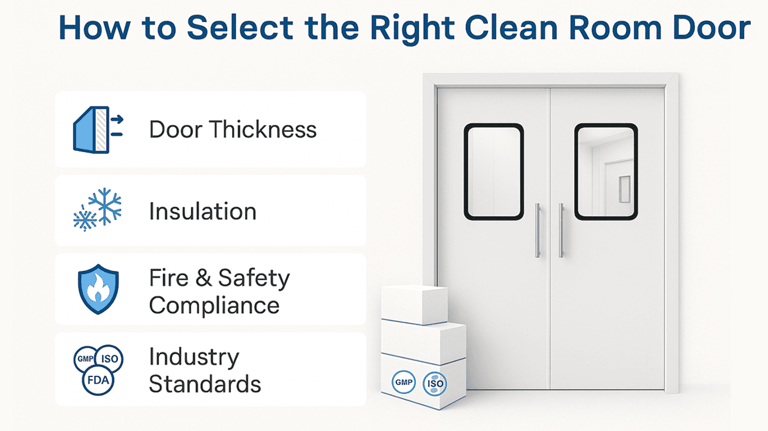

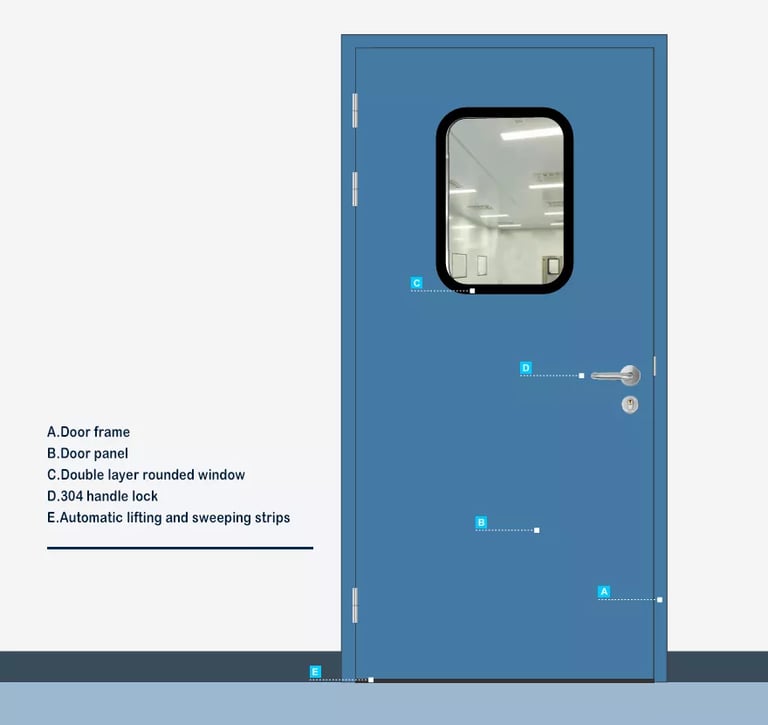

Clean Room Doors

What Are Clean Room Doors?

Clean Room Doors are specially designed doors used in controlled environments where air quality, hygiene, and contamination control are critical. These doors are installed in industries like pharmaceuticals, hospitals, laboratories, food processing units, and electronics manufacturing.

They help maintain

✔ Air pressure balance
✔ Dust & particle control
✔ Bacteria-free environment
✔ Smooth and easy cleaning surface

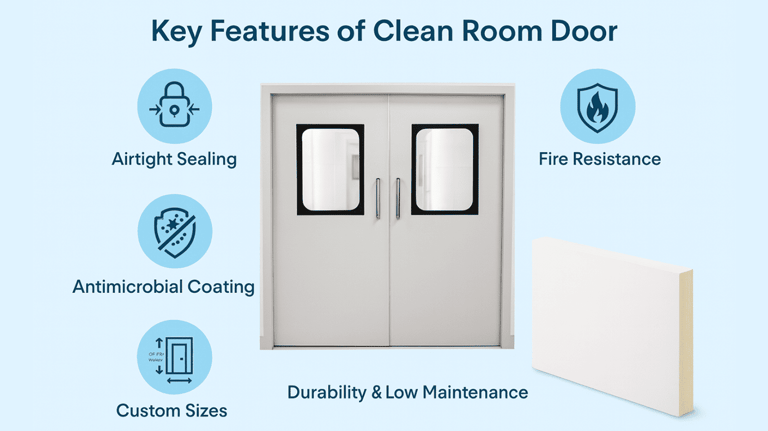

Key Features

Flush Surface Design – No dust collection edges
Hermetically Sealed – Airtight closing system
Antibacterial Coating – Powder-coated or laminated finish
Vision Panels – Double-glazed glass with flush fitting
SS Hardware – Stainless steel hinges, handles & locks
Fire Rated Option Available (if required)

Applications

Pharmaceutical Manufacturing Units
Hospitals & Operation Theatres
Laboratories & Research Centers
Food Processing Industries
Electronics & Semiconductor Units
Clean Manufacturing Areas

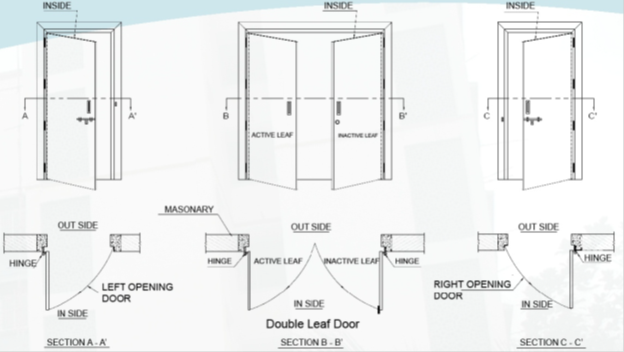

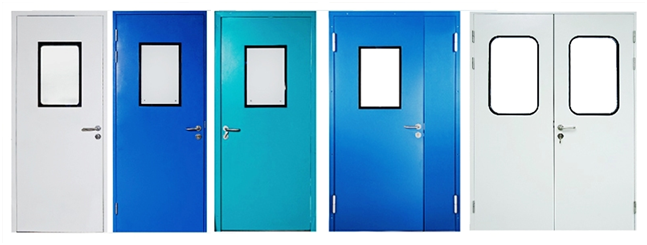

Types of Clean Room Doors

Single Leaf Hinged Door
Double Leaf Door
Sliding Hermetic Door
Fire Rated Clean Room Door
Emergency Exit Door
Interlocking Door System

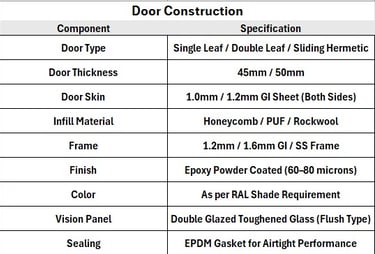

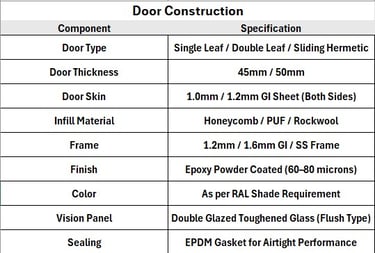

Technical Specifications (Standard)

Door Thickness: 45mm / 50mm
Frame: GI / SS / Powder Coated
Infill: Honeycomb / PUF / Rockwool
Finish: Powder Coated / Laminate / SS Finish
Glass: Double Glazed Toughened Glass

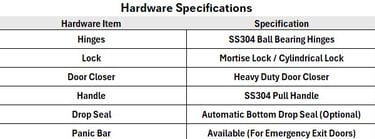

Hardware: SS304 Grade

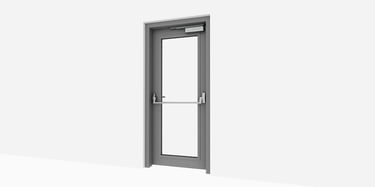

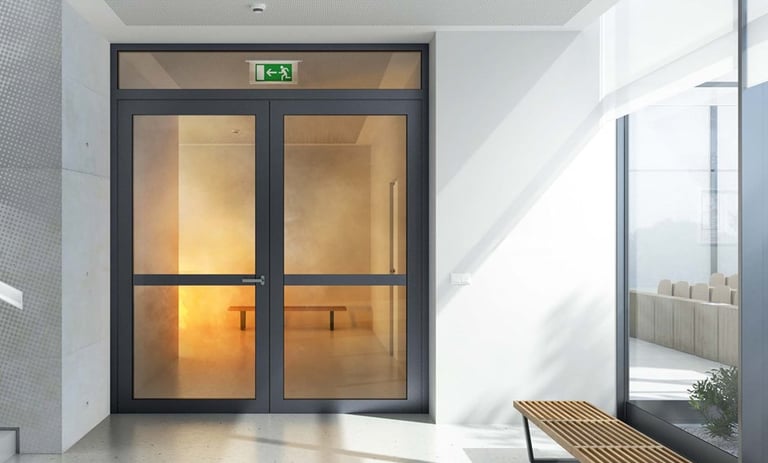

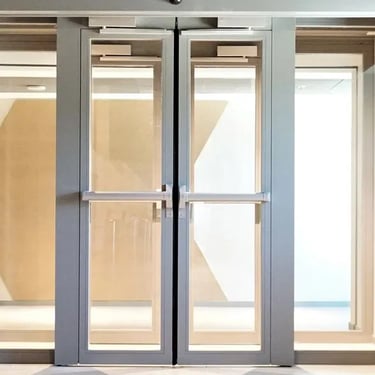

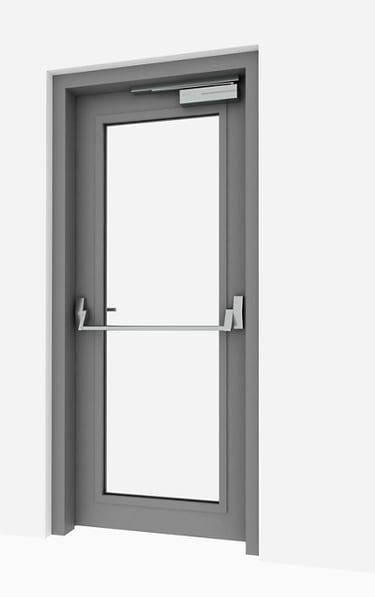

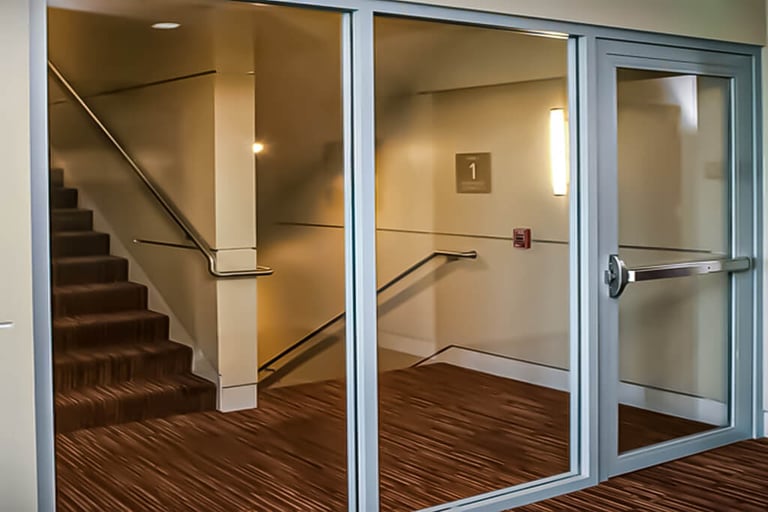

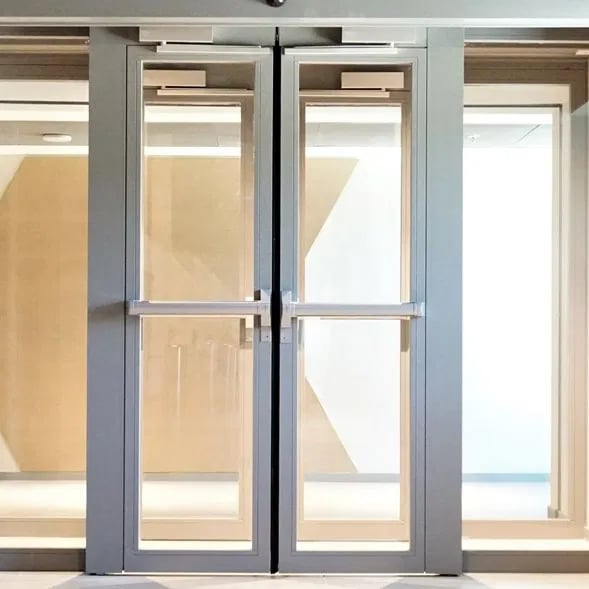

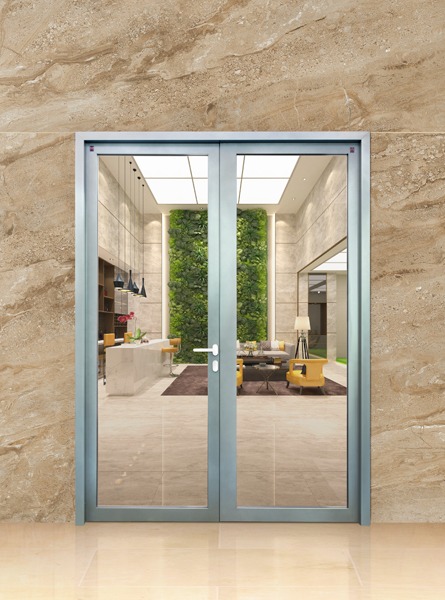

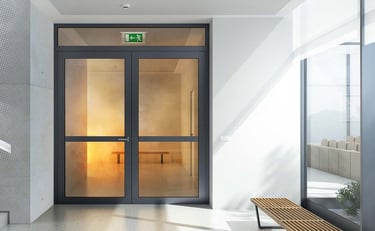

Glazed Fire Doors

Glazed Fire Doors are specially engineered fire-resistant doors fitted with certified fire-rated glass panels. These doors provide fire protection along with visibility and aesthetic appeal, making them ideal for commercial buildings, hospitals, hotels, and offices.

They are designed to prevent the spread of fire and smoke for a specified period while maintaining light transmission and visibility.

Fire Performance Features

✔ Prevents spread of flame & smoke
✔ Heat resistant up to certified duration
✔ Intumescent seals expand during fire
✔ Self-closing mechanism
✔ Panic hardware option available

Applications

Commercial Office Buildings
Hospitals & Healthcare Facilities
Hotels & Hospitality
IT Parks & Corporate Buildings
Staircase & Fire Exit Areas
Industrial Facilities

Hardware Options

Fire Rated Mortise Lock
SS Ball Bearing Hinges
Door Closer (Fire Rated)
Panic Bar
Vision Glass Beading System
Automatic Drop Seal

Compliance

Tested as per IS Standards
Suitable for NBC Fire Norms
Certification available from approved laboratories

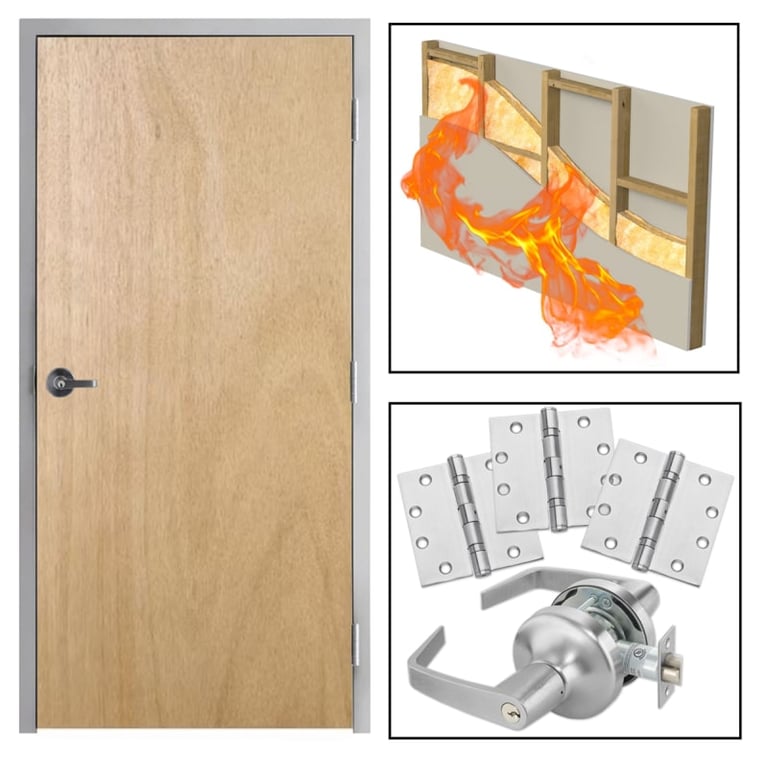

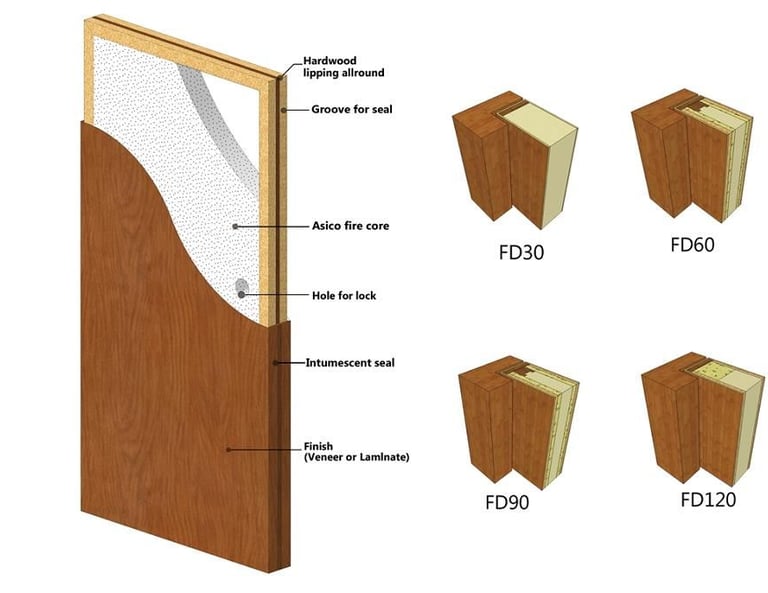

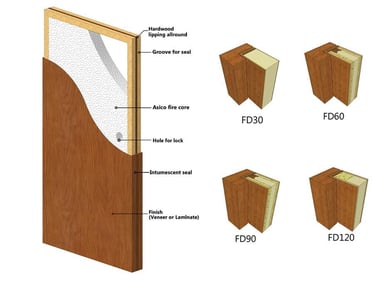

Wooden Fire Rated Doors

Wooden Fire Rated Doors are specially manufactured doors designed to resist fire and prevent the spread of flames and smoke for a specified duration (60 / 90 / 120 minutes). These doors combine fire safety with premium wooden aesthetics, making them ideal for commercial and residential projects.

They are widely used where both safety and appearance are important.
